SADP analogue Dewpoint meter
SADP Portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with padded carrying case. For table top or portable use with dessicant chamber for rapid readings.
ATEX: Intrinsically Safe Class I, Zone 0 Ex ia IIB + H2 T6. FM: Intrinsically Safe Calls I, groups A,B,C,D T6.
Application
- Prevent moisture buildup by measuring the moisture condensation temperature inside a ship's cargo hold
- Protect equipment by maintaining the precise environmental conditions required for sensitive manufacturing processes
사양(Specifications)
| DEWPOINT SENSORS |
| Sensor element Measuring range |
Shaw Ultra High Capacitance Aluminium Oxide Sesnor
P(Purple) : -100 to 0℃ dewpoint, 0~6,000ppm(V).
S(Silver): -100 to -20℃ dewpoint, 0~1,000ppm(V).
G(Grey): -80 to 0℃ dewpoint, 0~6,000ppm(V).
R(Red): -80 to -20℃ dewpoint, 0~1,000ppm(V).
B(Blue): -80 to +20℃ dewpoint, 0~23,000ppm(V). |
| Intrinsically Safety Certification |
ATEX: ExII 1G Ex ia IIC T6 Ga
ICEx: Ex ia IIC T6 Ga |
| AutoCal |
Field calibration/span check facility.
Activated and operated via potentiometer on the front of the instrument. |
| Factory Calibration |
Supplied with certi. of calibration traceable to National Physical Laboratory(NPL) |
| Accuracy |
±3℃/±4℃ dewpoint
NPL traceable -90℃ to +20℃ |
| Response time |
Wet to dry: -20℃ to -60℃ - less than 120 secs
Dry to wet: -100℃ to -20℃ - less than 20 secs |
| Sample Flow rate |
Flow independent but ideally 2 to 5 liters per minute. Max 20 liters/min. |
| ELECTRICAL |
| Electromagnetic |
Immunity: complies with EN 61000-6-1:2001 |
| Compatibility(EMC) |
Emissions: complies with EN 61000-6-3:2000 |
| Warm up time |
5 seconds |
| Display |
Analogue : 120mm Taut Band indicating meter showing dewpoint and ppm with amplified range of 0~10ppm on TR versions. |
| Power supply |
9V DC - six C type battery(included) |
| Battery life |
In excess of 150 hours continuous operation |
| Resolution |
0.1℃ dewpoint or 0.1ppm(v) |
| Repeatability |
Better than ±0.5℃ dewpoint |
| MECHANICAL |
| Dimension |
overall dimensions: 200mmW x 225mmD x 278mmH. 328mm at head up |
| Weight |
4.5kg |
| Operating pressure |
Atmospheric to 0.5bar |
| Operating humidity |
95%RH no condensing |
| Operating temp. |
-20℃ to +40℃ |
| Storage temp. |
-20℃ to +40℃ |
| Sensor protection |
316 sintered stainless sttel filter - 50 micron |
| Weatherproof |
IP66/NEMA 4X |
| Connections |
Two Fir Tree type on either side of desciccant chamber |

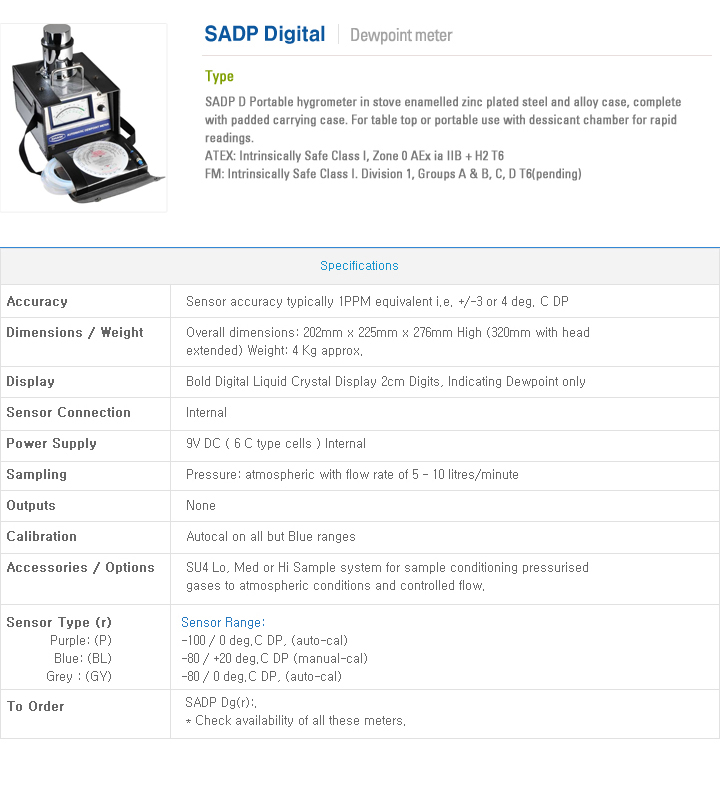

SADP digital Dewpoint meter
SADP Portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with padded carrying case. For table top or portable use with dessicant chamber for rapid readings.
ATEX: Intrinsically Safe Class I, Zone 0 Ex ia IIB + H2 T6. FM: Intrinsically Safe Calls I, groups A,B,C,D T6.
Application
- Prevent moisture buildup by measuring the moisture condensation temperature inside a ship's cargo hold
- Protect equipment by maintaining the precise environmental conditions required for sensitive manufacturing processes
사양(Specifications)
| DEWPOINT SENSORS |
| Sensor element Measuring range |
Shaw Ultra High Capacitance Aluminium Oxide Sesnor
P(Purple): -100 to 0℃ dewpoint, 0~6,000ppm(V)
S(Silver): -100 to -20℃ dewpoint, 0~1,000ppm(V)
G(Grey): -80 to 0℃ dewpoint, 0~6,000ppm(V)
R(Red): -80 to -20℃ dewpoint, 0~1,000ppm(V)
B(Blue): -80 to +20℃ dewpoint, 0~23,000ppm(V). |
| Intrinsically Safety Certification |
ATEX: ExII 1G Ex ia IIC T6 Ga
ICEx: Ex ia IIC T6 Ga |
| AutoCal |
Field calibration/span check facility.
Activated and operated via potentiometer on the front of the instrument. |
| Factory Calibration |
Supplied with certi. of calibration traceable to National Physical Laboratory(NPL) |
| Accuracy |
±3℃/±4℃ dewpoint
NPL traceable -90℃ to +20℃ |
| Response time |
Wet to dry: -20℃ to -60℃ - less than 120 secs
Dry to wet: -100℃ to -20℃ - less than 20 secs |
| Sample Flow rate |
Flow independent but ideally 2 to 5 liters per minute. Max 20 liters/min |
| ELECTRICAL |
| Electromagnetic |
Immunity: complies with EN 61000-6-1:2001 |
| Compatibility(EMC) |
Emissions: complies with EN 61000-6-3:2000 |
| Warm up time |
5 seconds |
| Display |
Digital 4 1/2 digit, LCD |
| Power supply |
9V DC - six C type battery(included) |
| Battery life |
In excess of 150 hours continuous operation |
| Resolution |
0.1℃ dewpoint or 0.1ppm(v) |
| Repeatability |
Better than ±0.5℃ dewpoint |
| MECHANICAL |
| Dimension |
overall dimensions: 200mmW x 225mmD x 278mmH. 328mm at head up |
| Weight |
4.5kg |
| Operating pressure |
Atmospheric to 0.5bar |
| Operating humidity |
95%RH no condensing |
| Operating temp. |
-20℃ to +40℃ |
| Storage temp. |
-20℃ to +40℃ |
| Sensor protection |
316 sintered stainless sttel filter - 50 micron |
| Weatherproof |
IP66/NEMA 4X |
| Connections |
Two Fir Tree type on either side of desciccant chamber |
SDHmin Dewpoint meter
SDH mini portable dewpoint hygrometer which offers quick and reliable spot-check measurement of dewpoint and trace moisture content for industrial applications.
Certified intrinsically safe for use in hazardous area to ATEX, IECEx and UL standards.
Application
- Prevent moisture buildup by measuring the moisture condensation temperature inside a ship's cargo hold
- Protect equipment by maintaining the precise environmental conditions required for sensitive manufacturing processes
| DEWPOINT SENSORS |
| Sensor element Measuring range |
Shaw Ultra High Capacitance Aluminium Oxide Sesnor
P(Purple): -100 to 0℃ dewpoint, 0~6,000ppm(V)
S(Silver): -100 to -20℃ dewpoint, 0~1,000ppm(V)
G(Grey): -80 to 0℃ dewpoint, 0~6,000ppm(V)
R(Red): -80 to -20℃ dewpoint, 0~1,000ppm(V)
B(Blue): -80 to +20℃ dewpoint, 0~23,000ppm(V). |
| Intrinsically Safety Certification |
ATEX: ExII 1G Ex ia IIC T6 Ga
ICEx: Ex ia IIC T6 Ga
UL Calss I Div.1 Groups A,B,C and D |
| AutoCal |
Field calibration/span check facility.
Activated and operated via potentiometer on the front of the instrument. |
| Factory Calibration |
Supplied with certi. of calibration traceable to National Physical Laboratory(NPL) |
| Accuracy |
±2℃ dewpoint
NPL traceable -90℃ to +20℃ |
| Response time |
Wet to dry: -10℃ to -60℃ - less than 120 secs
Dry to wet: -100℃ to -20℃ - less than 20 secs |
| Sample Flow rate |
Flow independent but ideally 2 to 5 liters per minute. Max 20 liters/min |
| ELECTRICAL |
| Electromagnetic |
Immunity: complies with EN 61000-6-1:2001 |
| Compatibility(EMC) |
Emissions: complies with EN 61000-6-3:2000 |
| Warm up time |
5 seconds |
| Display |
Full clour graphicd LCD |
| Power supply |
Rechargable Li-ion battery, charger included |
| Battery life |
In excess of 150 hours continuous operation |
| Resolution |
0.1℃ dewpoint or 0.1ppm(v) |
| Repeatability |
Better than ±0.2℃ dewpoint |
| MECHANICAL |
| Dimension |
overall dimensions: 97mmW x 147mmD x 211mmH. 259mm at head up |
| Weight |
1.75kg |
| Operating pressure |
Atmospheric to 0.3bar |
| Operating humidity |
95%RH no condensing |
| Operating temp. |
-20℃ to +50℃ |
| Storage temp. |
-30℃ to +70℃ |
| Sensor protection |
316 sintered stainless sttel filter - 50 micron |
| Weatherproof |
IP66/NEMA 4X |
| Connections |
Two Fir Tree type on either side of desciccant chamber |
|
